20” x 4.5” Rain Tank Whole House Water Filter System UV Sterilizer | WaterMark Certified | Australian Standard - Shield Water Filter

20” x 4.5” Rain Tank Whole House Water Filter System UV Sterilizer | WaterMark Certified | Australian Standard

20” x 4.5” Whole House Water Filter System + UV Sterilizer

3-Stage Wall Mount | WaterMark Certified | Ideal for Rain Tank Water | UV Flow Rate: 55L or 80L per Min


Clean, Safe Water for Your Entire Home

Upgrade your water quality with this heavy-duty 3-stage whole house filtration system, designed for Australian homes using town water. With WaterMark-certified housings, antibacterial or anti-scale options, and a high-performance UV sterilizer, it delivers superior protection against chlorine, sediment, odours, and microbial risks.

⚠️ Important: Not suitable for direct sunlight. Please install in a shaded or undercover outdoor area (e.g. garage, shed). For outdoor direct exposure, choose the version with a stainless steel cover.

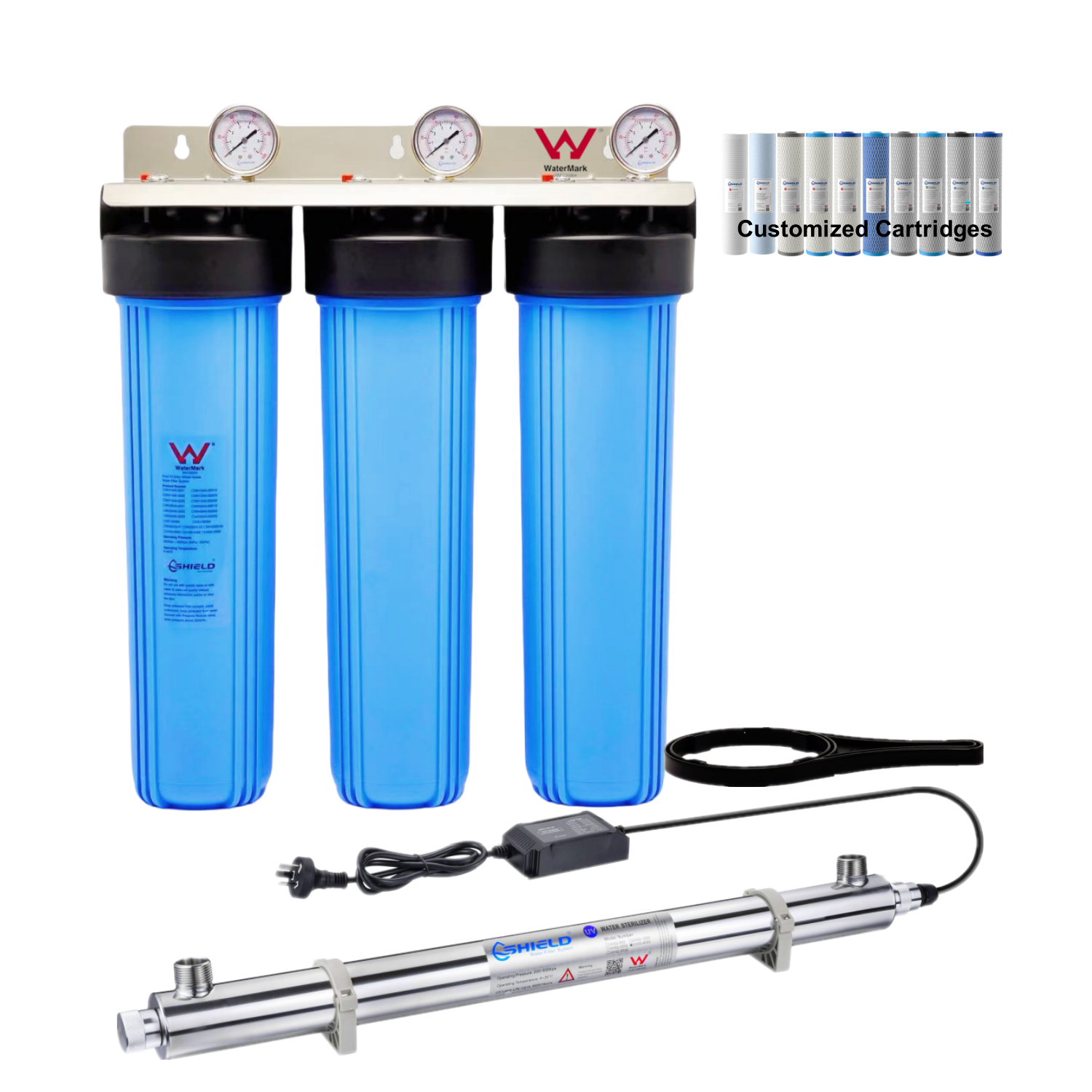

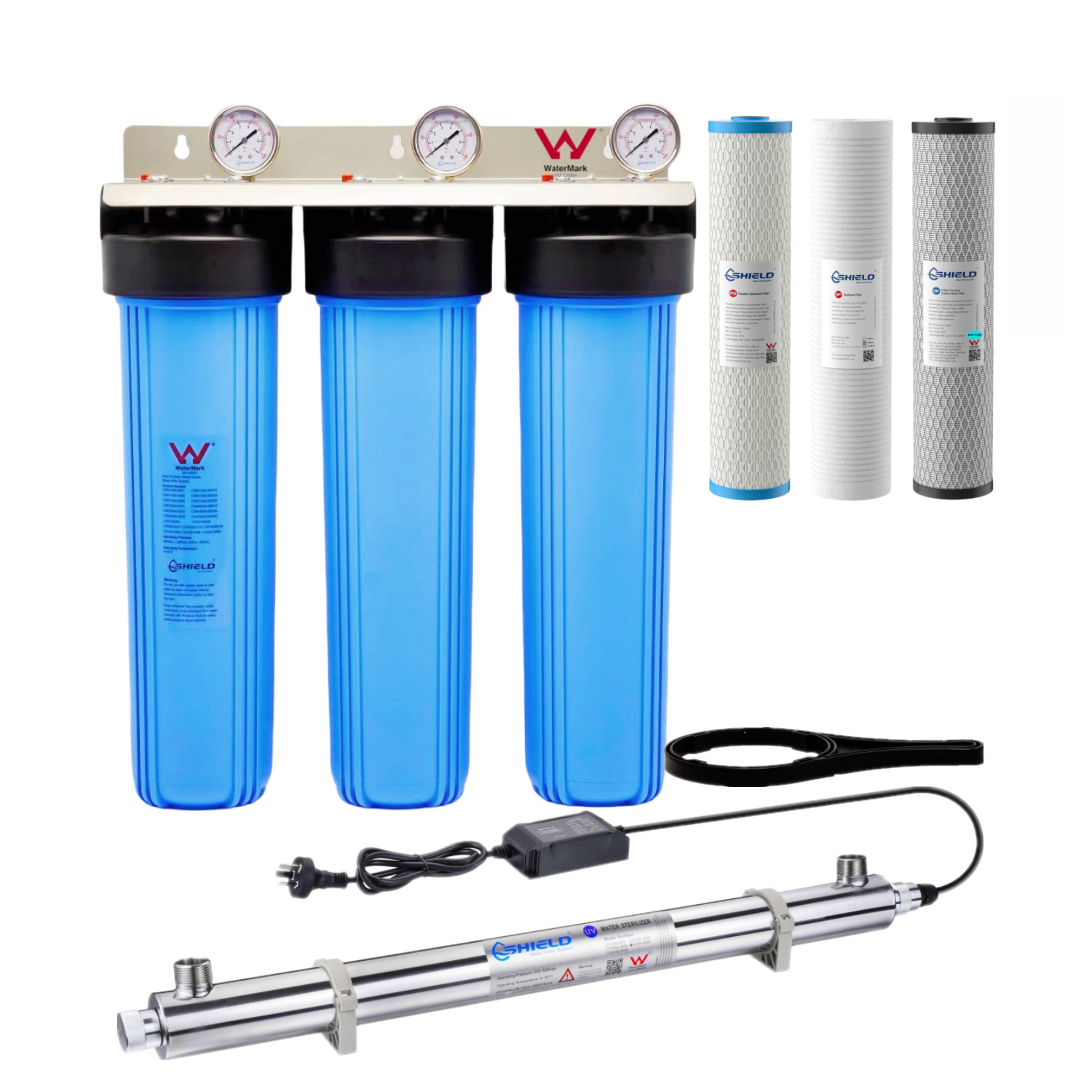

🔧 What's Included:

  • ✔ 3-Stage Filter Housing System (fits standard 20” x 4.5” Big Blue cartridges)

  • ✔ UV Sterilizer Unit (choose 55L or 80L per min)

  • ✔ 3 x Pressure Gauges – Monitor each stage easily

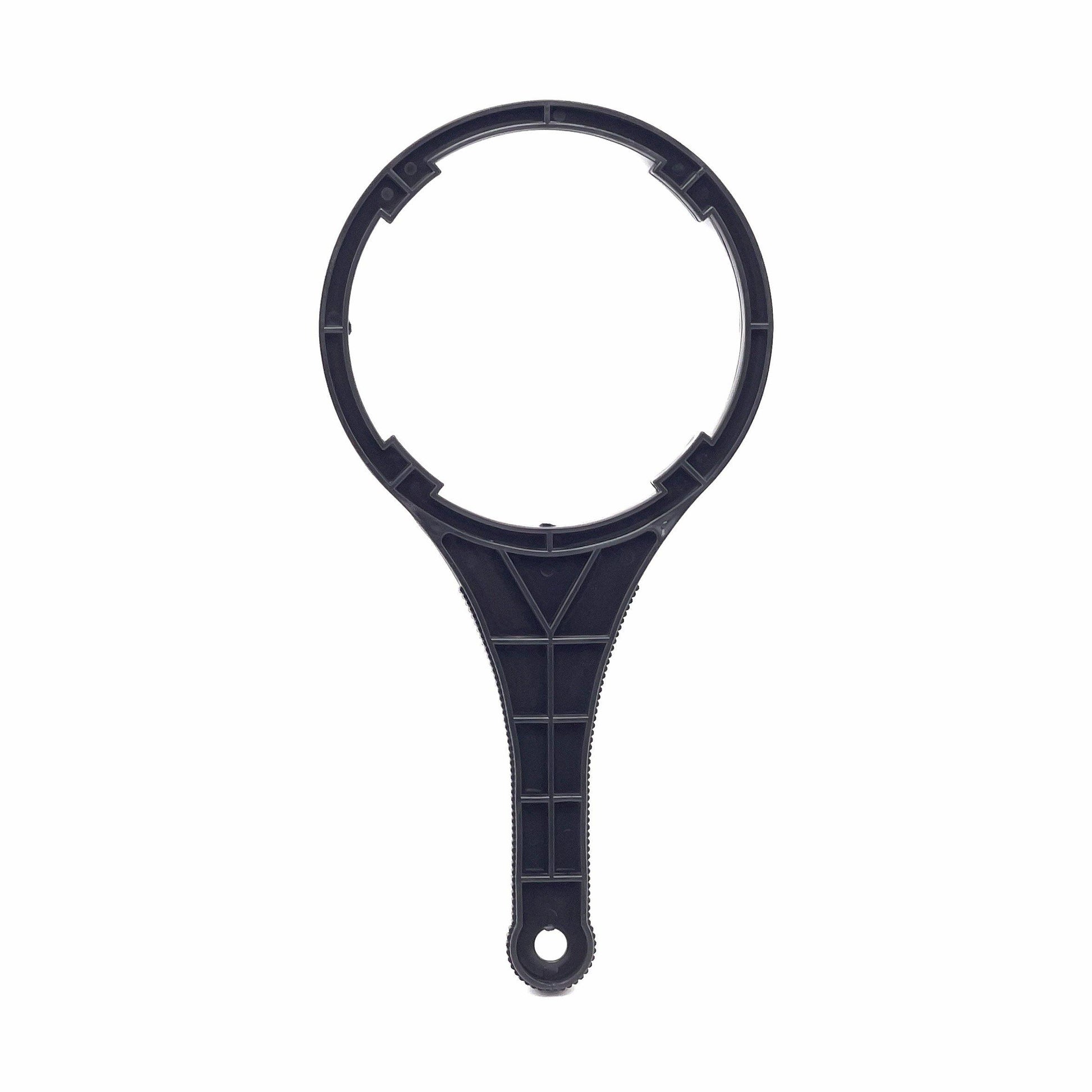

  • ✔ Filter Wrench – For simple cartridge changes

  • ✔ 3 x Filter Cartridges

🧪 Choose Your Filter Combo:

1. Standard Combo

  • 5 Micron Pleated Washable Sediment Filter

  • 1 Micron Antibacterial Polyspun Sediment Filter

  • 0.5 Micron Coconut Carbon Block Filter

2. Antibacterial Combo (Nano Silver)

  • 5 Micron Washable Antibacterial Pleated Filter

  • 1 Micron Nano Silver Polyspun Sediment Filter

  • 0.5 Micron Nano Silver Coconut Carbon Block Filter

3. Anti-Scale Combo

  • 5 Micron Pleated Sediment Filter

  • 1 Micron Gradient-Density Sediment Filter

  • 0.5 Micron Anti-Scale Coconut Carbon Block Filter


💡 UV Sterilizer Options:

  • 55L/min UV Unit – Ideal for homes with up to 4 people

UV System Size: 7 cm (W) x 10 cm (D) x 93 cm (L)

  • 80L/min UV Unit – Best for households of 4–6 people or higher water usage

UV System Size: 7 cm (W) x 10 cm (D) x 100 cm (L)


🔬 What Does the UV Sterilizer Do?

The integrated UV sterilizer uses UV-C light to kill 99.99% of bacteria, viruses, and microorganisms in water — including E. coli, Salmonella, Giardia, and Cryptosporidium.
It provides an added layer of protection after filtration, making it ideal for households that want peace of mind with every tap.


✅ Key Features:

  • Removes up to 99% Sediment, chlorine, VOCs, and odours

  • WaterMark Certified (AS/NZS 3497)

  • UV kills bacteria and viruses – chemical-free disinfection

  • Double O-ring housings for leak prevention

  • 1” BSP brass ports – Withstand high pressure

  • Wall mount design – Compact and easy to install

  • Supports high water flow – 55/ 80L per min

  • Dimensions: 58 cm (W) x 20 cm (D) x 65 cm (H)


Why Choose This System?

Perfect for families, offices, and light commercial setups using town water. Whether you need standard, antibacterial, or scale-reducing filtration, this system offers long-lasting, high-flow performance with added UV disinfection for biological safety.

✔ Filters included – ready to install
✔ Optional UV – chemical-free microbial protection
✔ Safe, great-tasting water throughout your entire home
